The NSPAS3M series is a submillisecond responsive absolute pressure sensor product for the motorcycle intake manifold pressure sensor market. The product adopts automotive-qualified signal conditioning chips to calibrate and compensate the MEMS die output, which can convert pressure signals from 10kPa to 400kPa into analog output signals with a customized output range from 0 to 5V. While ensuring excellent reliability of the product, it integrates two chips into one package, greatly reducing the package size. At the same time, this products can provide standard output within the accuracy range in its operation temperature range without customer calibration, which can accelerate the process of product development and mass production; this product complies with the AEC-Q100 reliability standard.
• Width operating temperature range: -40℃~125℃
• High accuracy in full temperature range:
- Better than ±1.5%F.S. in the range of 0℃~85℃
- Better than ±2.0%F.S. in the range of -40℃~125℃
• Support -24V to 28V over voltage and reverse voltage protection
• Support 5V power supply and direct power supply within 18V in absolute voltage output mode
• Fluorinated gel protection, compatible with oil and gas environment
• Faster response time less than 1ms
• Support absolute output/ratio-metric output, with output curve customized
• Pressure range: 10kPa~400kPa, which can be customized
• AEC-Q100 qualified

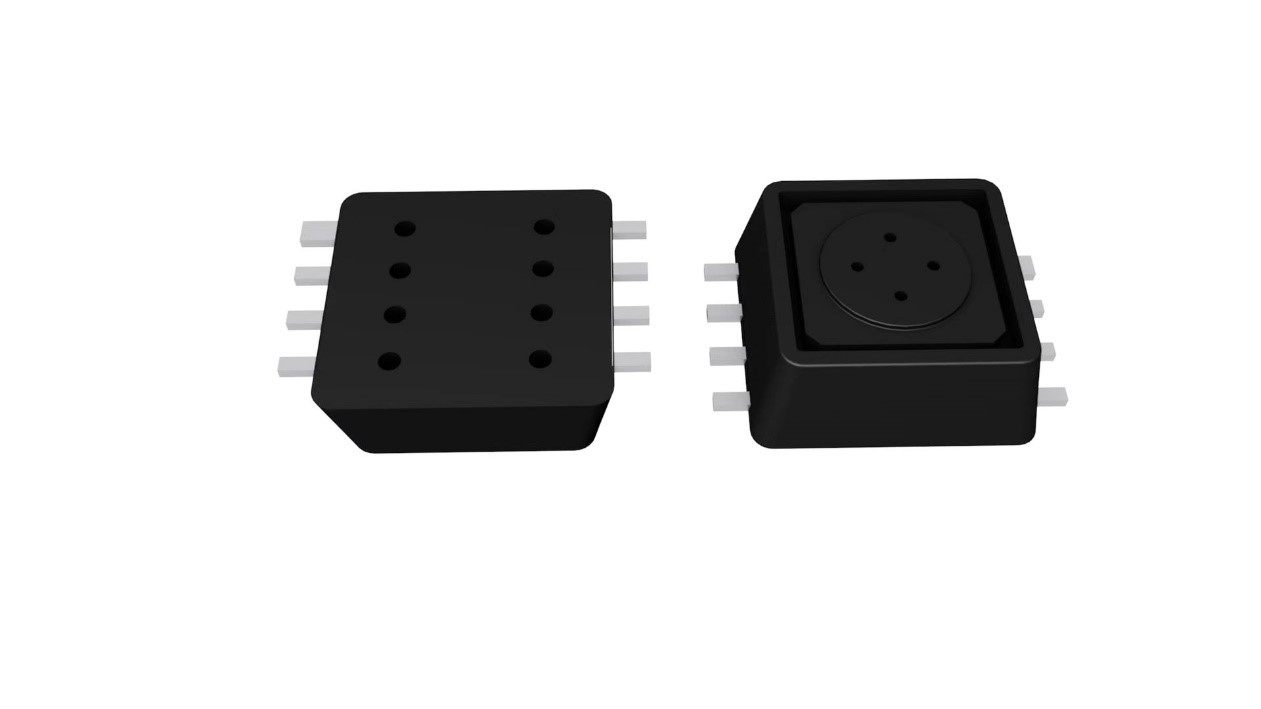

• Package: SOP-8 (7.0mm x 7.0mm)
• Automotive: motorcycle intake manifold pressure sensor, ECU/VCU atmospheric pressure detection, seat air bag pressure detection, canister desorption pressure detection etc.
• Industrial: gas/refrigerant leak detection, pressure transmitter, industrial vacuum degree testing, etc.
