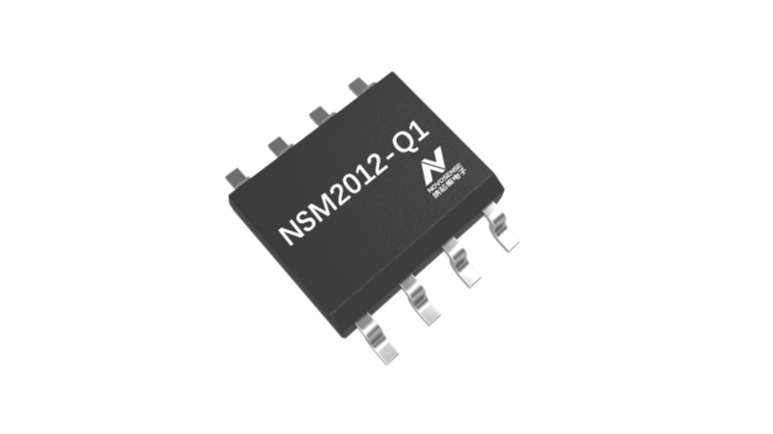

NSM2012-Q1 series is an automotive chip-level current sensor launched by NOVOSENSE which is mainly used for isolation measurement of current under 65A.
• 2.5~65A Wide current range available
• AC/DC input
• 3.3V/5V single power supply
• 1.2mOhm low Input conduction impedance
• ±1.5% current measurement accuracy
• 1.5us response time
• 400kHz signal bandwidth
• Withstand up to 4kA surge current (8μs /20μs surge current waveform)
• Ratiometric output
• Fixed output + Pseudo Differential Output
• SOP8 package: 600VDC working isolation voltage / 3000 Vrms @ 1 min Withstand isolation voltage
• 4mm Creepage distance
• 4mm Clearance distance
• Common-Mode magnetic field rejection
• -40~125°C operating temperature range
• AEC-Q100 Grade 1 qualified
• UL62368/EN62368 safety certification
• Automotive: OBC, DC/DC, PTC heater, charging gun, PDU, etc.
